Imported Stainless Steel Plate , Furnace Brazing Equipement , Mesh Belt Gas Aluminum

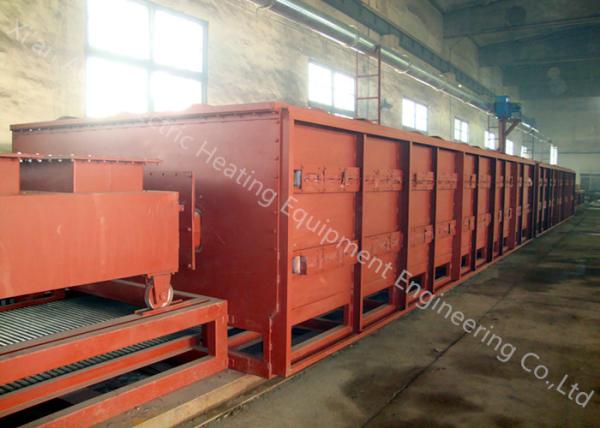

This mesh belt continuous gas aluminum brazing furnace is mainly used for aluminum and iron, stainless steel and aluminum plate, copper etc, . After such equipment treatment, the product surface becomes bright without oxidation.

The furnace boasts stylish design, rational structure, energy saving, high heat efficiency, stable production quality, safe and easy use, not generating industrial pollution.

Advanced temperature control manners: Intelligent thermostat and silicon controlled rectifier ensure temperature control precision of ±1℃. It’s advanced, reliable, practicable and cost effective as an industrial furnace.

The degreasing furnace is heated by natural gas or electricity. The oil on the core will be removed by stir fan through circulating hot air. During this process, the lubricating oil will be evaporated,then burning in the incinerator. The temperature control of this furnace is adjusted by PID. Within the width of mesh-belt, the temperature uniformity will be within ±10.

The final exhaust gas is below 300°C, the screw blades are designed in the muffle to acieve dwell time (1s at least) and 95% splitting efficiency. Before entering the combustion chamber, the exhaust gas from degreasing furnace must be transferred by heat exchanger, and the temperature of exhaust gas after heat exchange is not lower than 400°C. The heat efficiency is more than 50%.

The pre-heating furnace is connected to the inlet curtain box and heated by natural gas. Within the width of whole belt, the furnace temperature uniformity will be within ±5°C(Based on the same section of the moving section). The temperture divation of core will be within ±2°C.

Hard brazing

Brazing solder has a melting point of more than 450°C and high joint strength, The strength of hard brazing joints is high, some kinds of brazing solders can be used in high temperature. There are many kinds of solder for hard brazing, the most widely used solder based on aluminum, silver, copper, manganese and nickel. Aluminum base solder is often used for brazing aluminum products. Silver base copper filler metal is often used for brazing copper and iron parts.

Technical characteristics of aluminum brazing furnace

Process flow of aluminum brazing:Put on the parts - degreasing (heat degreasing or water cleaning degreasing)- brazing spray - drying - preheating - brazing - cooling (under protective atmosphere)- strong cooling – take down the parts

The atmosphere in the brazing furnace is significant during the brazing process, it requires that the Oxygen concentration should be below 10 ppm and the drew point is lower than -72°C. The temperature uniformity of the same product is especially important when the brazing temperature is reached, the general requirement is ±3℃. The requirements for some products are even higher

Main characteristics of aluminum brazing furnace

1. From the stirring of brazing agent, spraying, drying, brazing to cooling are continuously and automatically operated, which ensures the mass production reliably and saves the cost to the greatest extent.
2. The parameter related to the brazing quality like drying temperature, brazing speed, brazing temperature, warming up rate, nitrogen flow and pressure will be automatically controlled after setting the program which ensures the product stability.
3. All key components are procured globally to ensure the reliability of aluminum brazing furnace.
4. The muffle chamber in the furnace is made of imported stainless steel plate (SUS316L) with a thickness of 8mm or more.
5. Aluminum brazing furnace adopts advanced automatic temperature control technology, temperature control accuracy is 1.
6. The advanced atmosphere protection design of aluminum brazing furnace ensures that the N2 in the furnace is fully protected when the brazing furnace is in operation, and the amount of N2 is minimum.

About us

Started in early 1990’s Xi’an Aojie designed and manufactured its first mesh-belt controlled atmosphere continuous brazing furnace. In the years that have followed, Xi’an Aojie has committed to independent research and development of advanced brazing furnaces and heat treat equipments. Nowadays, Aojie mesh-belt continuous controlled atmosphere brazing furnace has successfully replaced imported equipment due to its unique advantages. Aojie mesh-belt controlled atmosphere brazing furnaces are widely used for brazing parts of stainless steel, carbon steel, aluminum, brass and copper, etc. by the industries of automobile, aero-space & aviation, and household appliances, etc.

Xi’an Aojie is a full service supplier, beginning with initial technical services such as feasibility studies, facility analysis and planning, continuing through equipment manufacturing, system installation, furnace start-up and operator training.

Aojie is always untiringly seeking to provide dependable equipment and technical support for customers to manufacture high-quality and low-cost products.

Aojie Patents

• A kind of heater can be used in aviation
• Method of making cooling muffle
• Cooling muffle
• New type of muffle
• A kind of resistance furnace heating component layout device can be used in aviation
• A kind of ternary nonseptate type resistance furnace heating device can be used in aviation
• A kind of ternary heterogeneous type resistance furance heating device can be used in aviation
• A kind of ternary homogeneity type resistance furnace heating device can be used in aviation
• A kind of ternary 1T type resistance furnace heating device can be used in aviation

Customer Service

Aojie’s Aim “The First Class Service, The Best Quality”

Before Service

Process Analysis

Feasibility Demonstration

Technical Consultation Service

Process Test

Integrative and Integrated Solution Including Process and Brazing Material Solution

After Service

Preparation in Advance, Layout, Water, Electricity, Gas and Drive Facility

Equipment Acceptance to Ensure Eligible Products for Clients

Specialized Technical Training

Quality Guarantee, Promise to Users Guarantees in Three Respects

Supply Friendly and Efficient Service as On-site Service and etc.

Xi'an Aojie Electric Heating Equipment Engineering Co., Ltd. is a premier manufacturer of mesh-belt controlled atmosphere continuous brazing furnaces and industrial heat treat systems.

Started in early 1990s, Xi'an Aojie designed and manufactured its first mesh-belt controlled atmosphere continuous brazing furnace. In the years that have followed, Xi'an Aojie has committed to independent research and development of advanced brazing furnaces and heat treat equipments.

Nowadays, Aojie mesh-belt continuous controlled atmosphere brazing furnace has successfully replaced imported equipment due to its unique advantages. Aojie mesh-belt controlled atmosphere brazing  furnaces are widely used for brazing parts of stainless steel, carbon steel, aluminum, brass and copper, etc. by the industries of automobile, aero-space & aviation, and household appliances, etc.

To serve the aero-space & aviation industry, Aojie developed high, intermediate and low temperature high precision electric heating car bottom furnaces which meet temperature uniformity requirements set by US Military Specifications.

Aojie also developed BAB production lines for the production of stators and rotors of high efficiency and power economized motors.

Xi'an Aojie is a full service supplier, beginning with initial technical services such as feasibility studies, facility analysis and planning, continuing through equipment manufacturing, system installation, furnace start-up and operator training.

Aojie is always untiringly seeking to provide dependable equipment and technical support for customers to manufacture high-quality and low-cost products.

Some of our customers are as follows:
